Original: $63.00
-70%$63.00
$18.90The Story

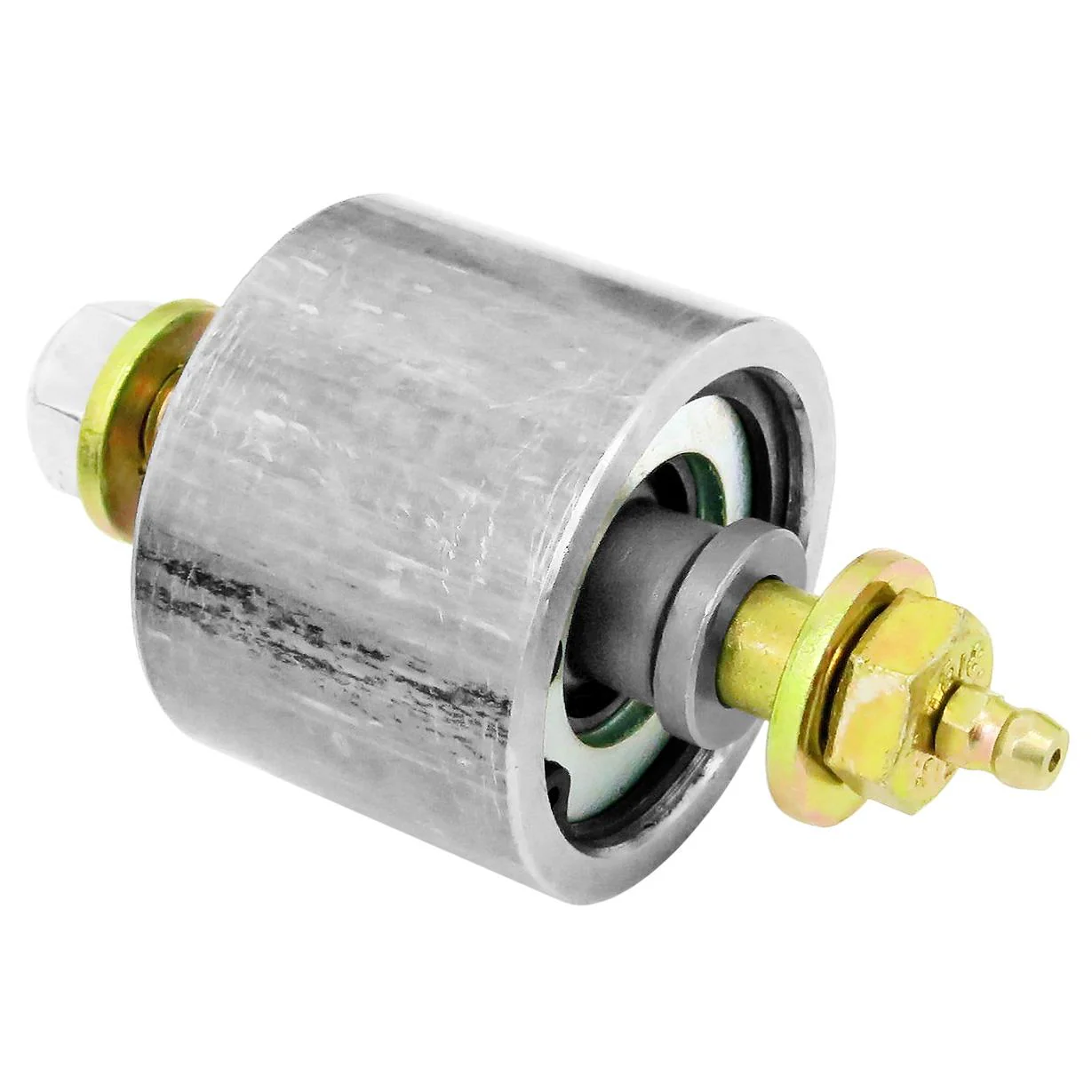

RockJock's weld-on Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!
Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.
The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.
The outer shell is weldable .180 Inch wall machined DOM tubing. This specific joint is a 2 Inch o.d. and features a 2 Inch mounting width and a .500 Inch thru bolt hole. Grade 8 greasable bolt with nut and washers included.
Details:
- Johnny Joint Rod End
- 2 Inch
- Weld-On
- 2 Inch X 0.500 Inch Ball
- Internally Greased
- Includes Greasable Bolt
- Each
Description
RockJock's weld-on Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!
Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.
The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.
The outer shell is weldable .180 Inch wall machined DOM tubing. This specific joint is a 2 Inch o.d. and features a 2 Inch mounting width and a .500 Inch thru bolt hole. Grade 8 greasable bolt with nut and washers included.
Details:
- Johnny Joint Rod End
- 2 Inch
- Weld-On
- 2 Inch X 0.500 Inch Ball
- Internally Greased
- Includes Greasable Bolt
- Each
