Adjustable Link Tower 3.5 inch Axle Tubes No Offset Motobilt - MB1539-175-350

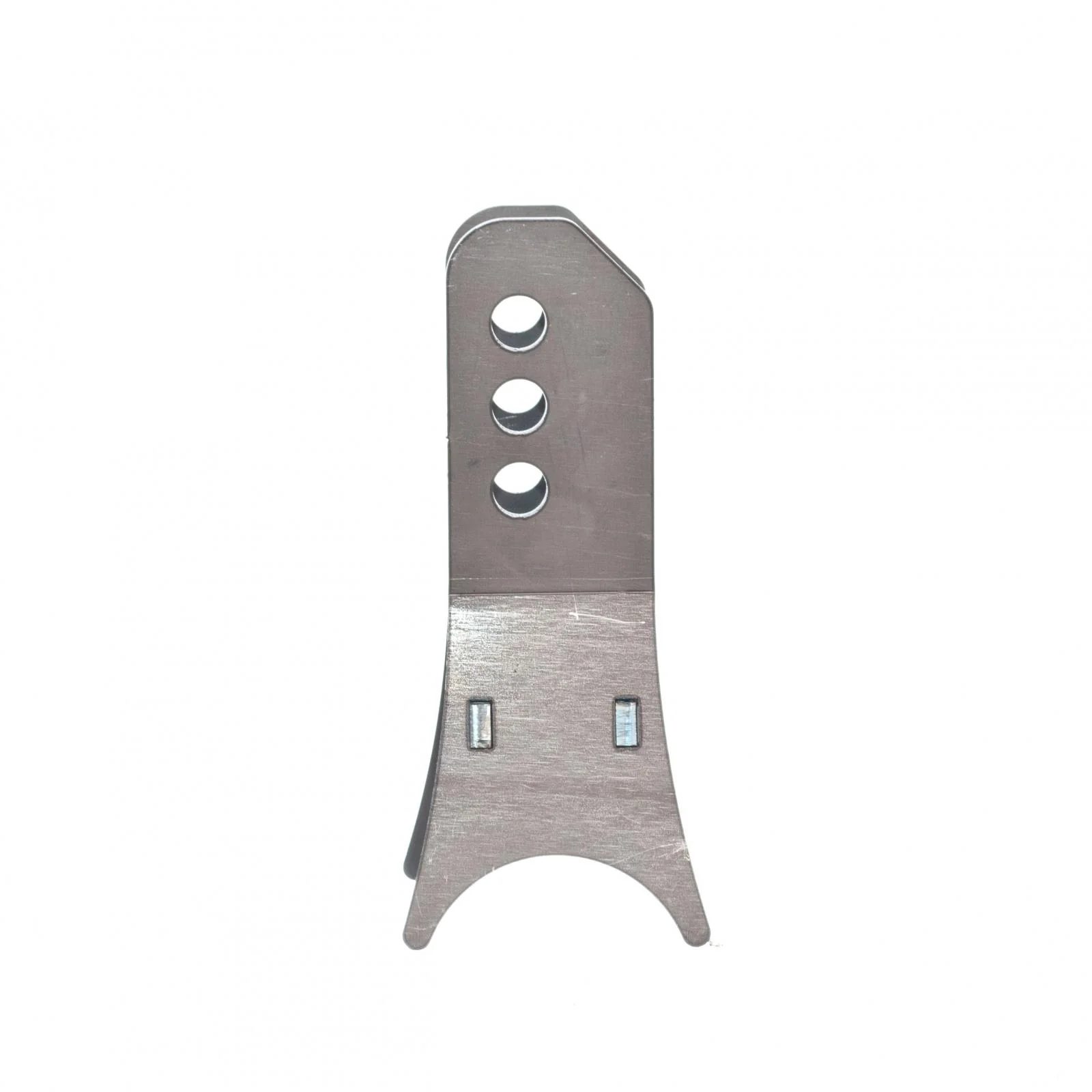

The Motobilt adjustable link tower was designed to work with many applications. The tower comes in 3.5 inch axle tube diameter configuration. There are 3 link mounting holes that are each 5/8 inch in diameter and are separated in 1 inch increments. These towers can be used in a variety of different scenarios but are especially well suited when installing a 3 link suspension. The towers mounting width for the rod ends is 1.75 inch. This is the same size we use with the Jeep YJ, TJ, LJ 4 link kits that can be converted to a 3 Link in front. These are laser cut in house at Motobilt from 1/4 inch thick steel plate. CNC formed so they tab and slot design will allign itself perfectly.
Features:

• Adjustable link tower-3.5 inch axle tubes-no offset
• Mounting width for the rod ends is 1.75 inch
• Laser cut 1/4 inch thick steel plate
• 3 link mounting holes that are each 5/8 inch in diameter and are separated in 1 inch increments
• Sold as each

Note:

• These will need to be welded together
• Works with many applications

Specifications:
